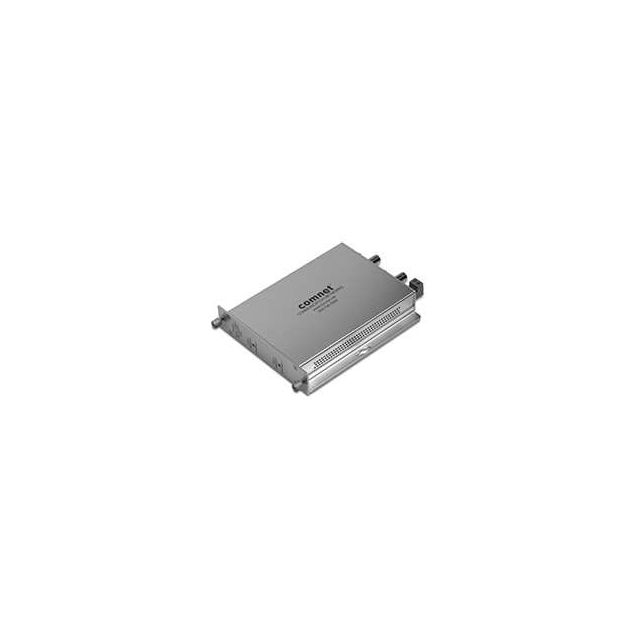

Comnet FVR22 | Dual Video Receiver, Automatic Gain Control, Multimode, 850nm
The ComNet FVR22 dual video receiver detects two independent AM video signals in one module on two independent multimode fiber optic cables.
The module is not a multiplexer.
The module is ideal for smaller CCTV installations and the rack mount version can be used to double the fixed video capacity of the C1 rack for up to 28 independent video channels per card cage.
The modules utilize Automatic Gain Control (AGC).
The receiver is compatible with the ComNet FVT11M and the FVT20 dual video transmitte r.
Plug-and-play design ensures ease of installation.
Bi-color (Red/Green) LED indicators confirm equipment operating status.
Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted.
Comnet – FVR22 – Features
- AM Video Receiver
- NTSC, PAL, SECAM compatible
- Full range Automatic Gain Control (AGC)
- Two independent receivers in one model
- Full color compatibility
- Can be used to double the fixed video capacity of a C1 card cage
- Plug-and-Play design for eaf installation
- No in-field electrical or optical adjustments required
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.
- Bi-Color (Red/Gree) indicating LED to monitor system performance
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use ComFit
- Automatic resettable fuses on all power lines
- Lifetime Warranty
Comnet – FVR22 – Specifications
| Audio Support | NO |
| Capacity | 2 CHANNEL |
| Type | RECEIVER |
| Form Factor | BOX |
| PTZ Control | NO |
| UNSPSC Code | 46171600 |
