Blonder Tongue PS-1536 | Power Supply Dual Output -21 VDC At 100 mA discount

Description

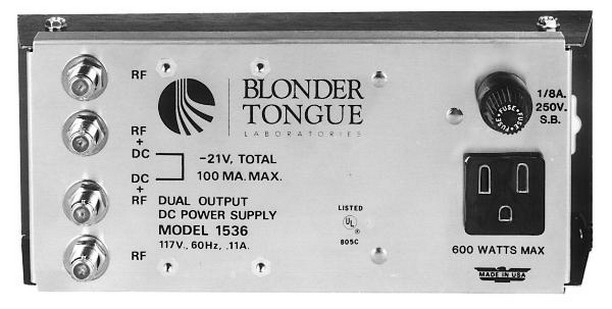

Blonder Tongue PS-1536 | Power Supply Dual Output -21 VDC At 100 mA

The PS-1526 and PS-1536 are professional quality- DC power supplies designed to power SCMA and CMA Series antenna preamplifiers. Both units provide -21 VDC and allow for a combined VHF and UHF feed to be diplexed with the power feed. The PS-1536 has a dual output for powering two loads- with a maximum current rating of 100 mA. The PS-1526 has a single output for powering one load- with a maximum current rating of 40 mA. The PS-1526 and PS-1536 are housed in an aluminum case with an auxiliary AC receptacle. Both units offer regulated and surge-protected power. The PS-1536 has a panel mounted fuse- provides an additional level of short circuit protection on the regulator and a clamped output voltage to protect connected loads.

Blonder Tongue – PS-1536 – Features

• Single Output- 40 mA Capacity
• Regulated and Surge Protected
• Auxiliary AC Receptacle
• Power Requirements:117 VAC- ±10 %- 60 Hz- 0.11 A
• Temperature Range: 0 to +50 °C
• Mechanical: Dimensions (W x H x D) 8.25 x 3.50 x 2.25 in. 210 x 89 x 57 mm
• Weight: 2.00 lbs.- 0.91 kg
• Connectors: Input”F” Female; Output”F” Female
