Description
Features

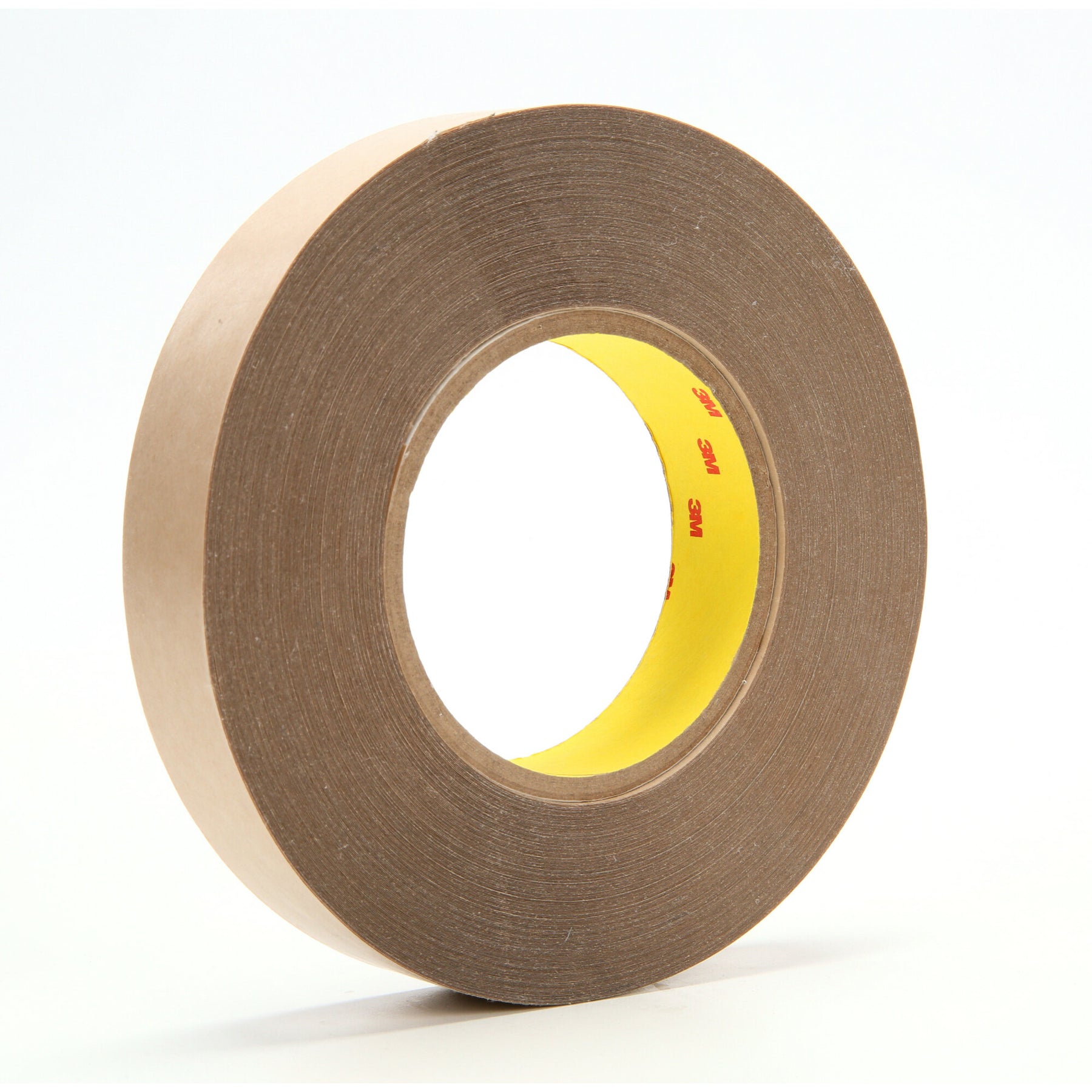

3M Adhesive Transfer Tape 9485PC leverages the power of 3M High Performance Acrylic Adhesive 350 and is mounted on a tan, 58 lb. PCK (polycoated kraft) paper liner for moisture resistance. This transfer tape is an excellent solution bonding high and low surface energy materials. It can also be used for joining materials that have rougher surfaces.
Join High and Low Surface Energy Materials
3M™ Adhesive Transfer Tape 9485PC is a 5.0 mils (.127 mm) thick transfer tape consisting of our 3M™ Adhesive 350, a modified high performance acrylic adhesive designed for applications requiring high shear strength. The adhesive is a mounted on a tan colored, 58 lb. PCK (polycoated kraft) liner. This liner is moisture resistance and helps to minimize wrinkles. This tape is a high performance, high temperature, solvent-free industry standard tape with excellent chemical (such as gasoline, oil, sodium chloride, mild acids, alkaloids and more) and moisture resistance. It is a fiber reinforced adhesive, a feature that is important for roll stability in narrow widths. This tape is ideal for joining materials that have rougher surfaces.
Recommended Applications
- Bonding high and low surface energy materials and powder coated paints
- Narrow width automated dispensing
- Bonding foams to low surface energy materials (LSE) while offering elevated temperature performance
- Gasketing
- Labeling
High Temperature Adhesion
3M™Adhesive 350 is a high-tack, high performance acrylic adhesive system featuring high initial adhesion to metals and high surface energy plastics. It offers excellent humidity, water, solvent, chemical and short term heat resistance. The adhesive is designed to provide exceptional shear strength, even at elevated temperatures. Shear strength is a measure of resistance to a sliding force along a plane that is parallel to the direction of the force. Adhesive 350 is formulated for temperate exposure up to 450°F/232°C for short periods of time and up to 300°F/149°C for extended time frames.
What are Adhesive Transfer Tapes?
In general, 3M adhesive transfer tapes are rolls of pressure sensitive adhesive pre-applied to a special release liner. The tape consists of adhesive only, and does not have any type of backing material. For application the tape is positioned adhesive side down to a surface and the liner is removed, exposing the backside of the adhesive to receive the secondary substrate.
Specifications
General Information
Brand3M™Adhesive TypeAcrylicCountry Of OriginUnited StatesSold AsRollLead Time2 daysCalifornia ResidentsProposition 65 Warning
Dimensions and Specifications
Maximum Operating Temperature (Celsius)232 Degree CelsiusMaximum Operating Temperature (Fahrenheit)450 Degree FahrenheitMinimum Operating Temperature (Celsius)-40 Degree CelsiusMinimum Operating Temperature (Fahrenheit)-40 Degree FahrenheitOverall Length (Imperial)60 ydOverall Length (Metric)54.86 mOverall Width (Imperial)1 inOverall Width (Metric)25.4 mmPrimary Liner Thickness (Imperial)4.2 milPrimary Liner Thickness (Metric)0.11 mmTotal Tape Thickness Without Liner (Imperial)5 milTotal Tape Thickness Without Liner (Metric)0.127 mmOverall Length Imperial60.0Volume49.77 cubic inch
815.62 cm3Weight12.55 oz
355.92 g
Other Details
Indoor/OutdoorIndoor/OutdoorIndustriesSpecialty VehiclePrimary Liner58# Polycoated Kraft PaperUnits Per Case36.0 RollIndoor OutdoorIndoor/Outdoor
Usage Information
ApplicationMounting & Trim Attachment
Material and Composition
Shelf Life730
Color and Appearance
Primary Liner ColorTan
Packaging and Shipping
Case Quantity36.0 Bags per Case
Resources
Datasheet
