Description
Features
3M Adhesive Transfer Tape 9458 is a thin, high-tack adhesive transfer tape designed for general purpose transfer applications. This tape is mounted on a 55 lb. densified kraft paper liner and is ideal for rotary die-cutting applications. It provides good chemical and UV resistance.
Ideal for Rotary Die-Cutting Processes
3M™ Adhesive Transfer Tape 9458 is a thin, high tack adhesive designed for rotary processing and high and low surface energy pats. It features 1 mil of our 3M™ High Strength Acrylic adhesive which delivers a high strength bond for thin width applications. Mounted on a 55 lb. densified kraft paper liner, this tape works well for a variety of applications including rotary die-cutting processes. The liner delivers added strength, resisting breakage for time-saving one-piece liner removal.
Recommended Applications
- Graphic nameplates
- Overlays on metal and low surface energy plastic surfaces
- Bonding metal nameplates and rating plates
High Strength, Thin Bond
3M™ 300 High Strength Acrylic Adhesive is a high-tack acrylic adhesive system featuring high initial adhesion and bonds well a wide variety of materials, including high and low surface energy plastics, textured plastics, foams, fabrics and coated papers. It features good chemical, solvent and UV resistance. Despite a thin profile, this adhesive is high-tack and high strength, even in elevated temperatures. 300 High Strength Adhesive forms a consistently strong bond across a range of temperature, including up to 250°F/121°C. By using a 55 lb. densified kraft paper liner, this tape provides reliable performance for a variety of applications, including graphic attachment options and select die-cutting processes.
What are Adhesive Transfer Tapes?

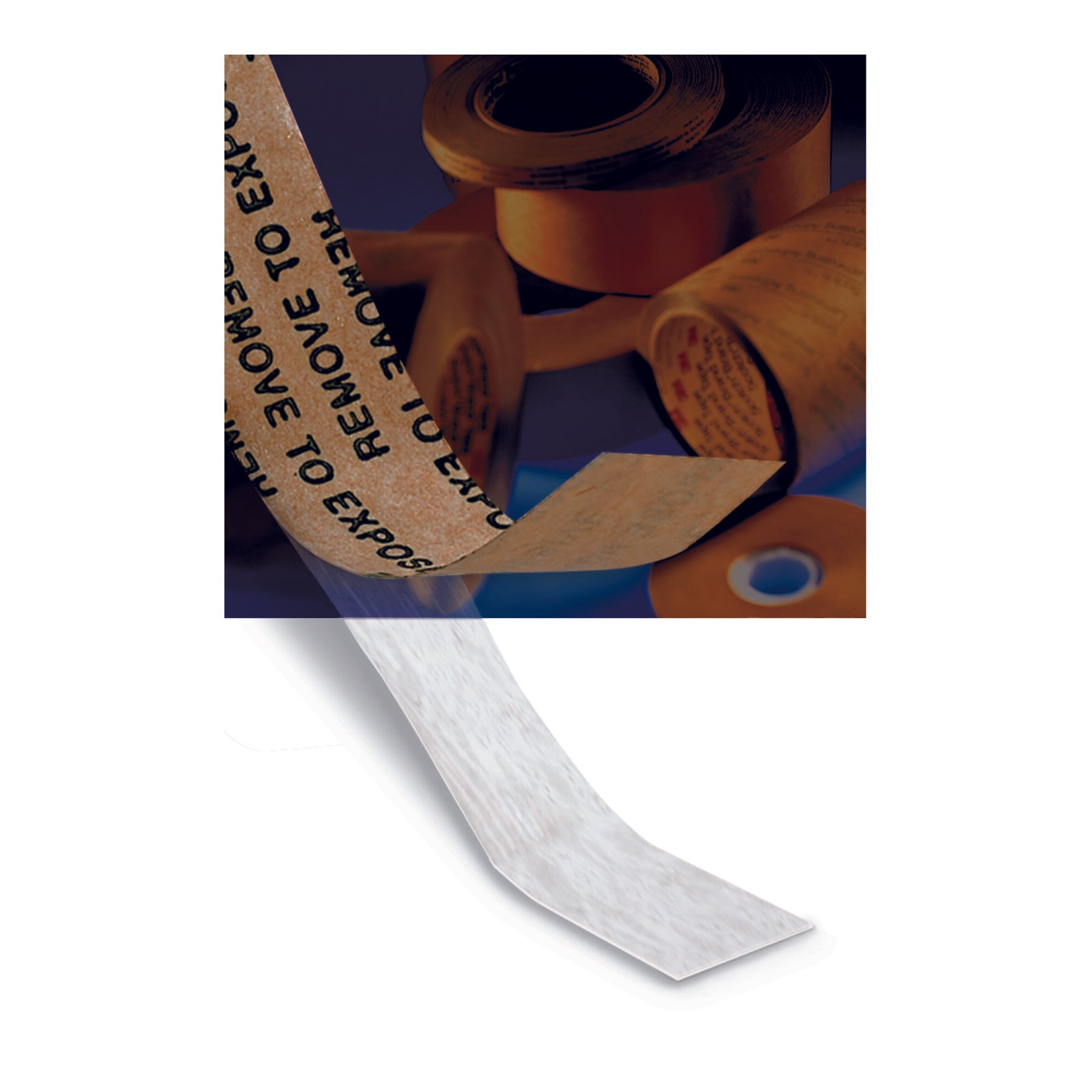

In general, 3M adhesive transfer tapes are rolls of pressure sensitive adhesive pre-applied to a special release liner. The tape consists of adhesive only, and does not have any type of backing material. For application the tape is positioned adhesive side down to a surface and the liner is removed, exposing the backside of the adhesive to the joining surface.
Specifications
General Information
Brand3M™Adhesive TypeAcrylicCountry Of OriginUnited StatesSold AsCaseLead Time5 daysCalifornia ResidentsProposition 65 Warning
Dimensions and Specifications
Maximum Operating Temperature (Celsius)121 Degree CelsiusMaximum Operating Temperature (Fahrenheit)250 Degree FahrenheitMinimum Operating Temperature (Fahrenheit)-40 Degree FahrenheitOverall Length (Imperial)60 ydOverall Length (Metric)54.86 mOverall Width (Imperial)4.25 inOverall Width (Metric)107.95 mmPrimary Liner Thickness (Imperial)3.2 milPrimary Liner Thickness (Metric)0.08 mmTotal Tape Thickness Without Liner (Imperial)1 milTotal Tape Thickness Without Liner (Metric)0.025 mmOverall Length Imperial60.0Width10.98 in
27.9 cmHeight14.76 in
37.5 cmLength10.98 in
27.9 cmVolume1781.3 cubic inch
29190.38 cm3Weight7.04 lb
3.2 kg
Other Details
IndustriesAutomotivePrimary Liner55# Densified Kraft PaperUnits Per Case3.0 Roll
Material and Composition
Shelf Life18 Month
Color and Appearance
Primary Liner ColorWhite
Resources
Datasheet
